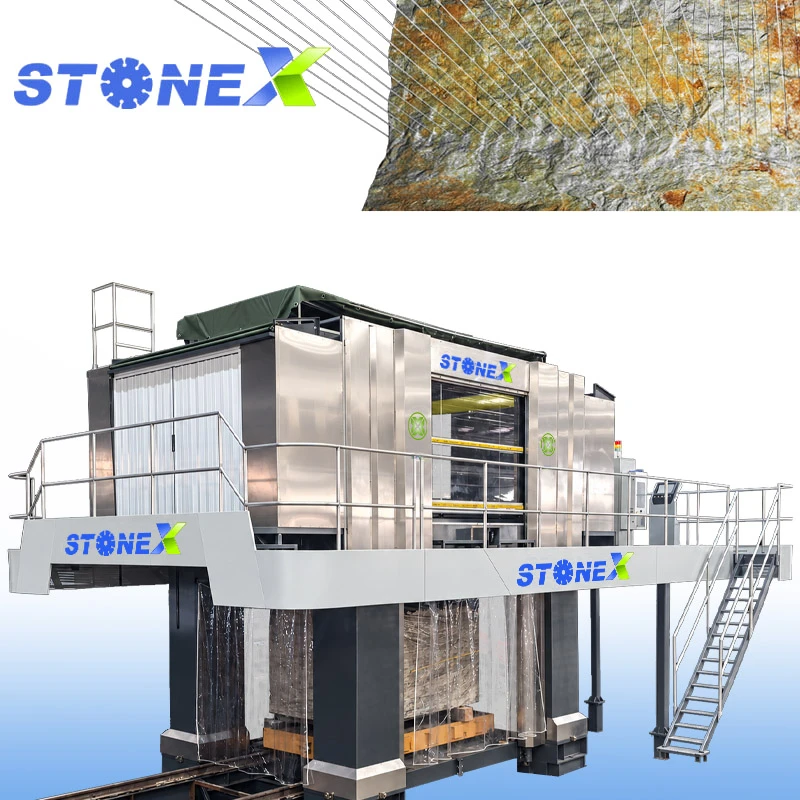

Marble Block Cutting Machine

When purchasing a marble block cutting machine, manufacturers need to consider more than cutting capacity. The amount of usable marble recovered from each block directly affects production economics.

The STONEX HLBMW-100/150 uses ultra-thin diamond-wire technology to cut marble blocks into multiple slabs while reducing kerf loss. With a cutting depth of approximately 200–300 mm per hour, it provides competitive cutting productivity while focusing on higher material utilization.

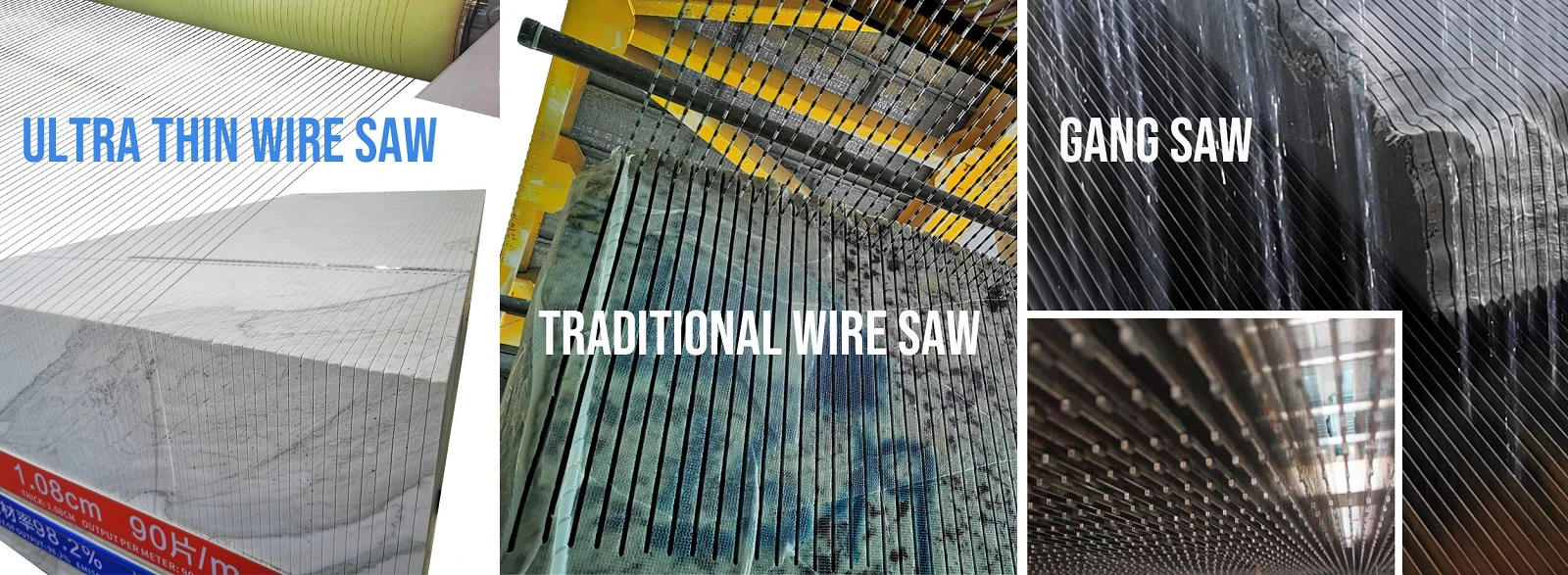

Marble blocks are traditionally processed using equipment such as stone gang saws and conventional multiwire saws. These technologies provide established solutions for high-volume slab production.

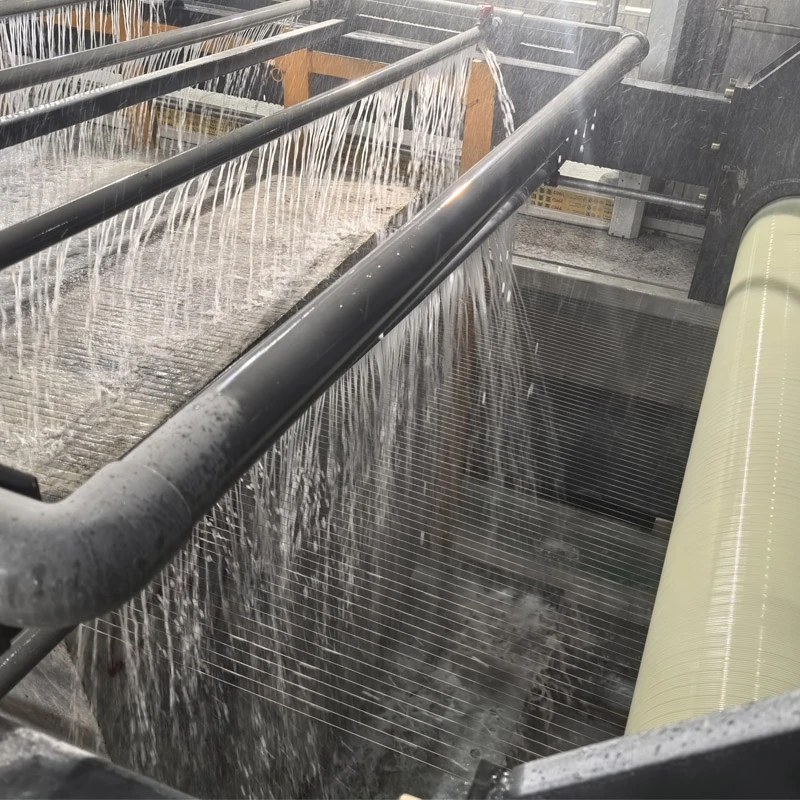

The HLBMW-100/150 takes a different approach: instead of using thicker diamond wires or segmented blades, it uses 0.3–0.8 mm ultra-thin diamond wire.

The objective is straightforward:

Cut multiple slabs efficiently while removing less valuable stone during the cutting process.

For high-value marble, reducing material loss can be as important as increasing cutting speed.

Every cutting operation creates kerf-the material removed by the cutting tool.
The HLBMW-100/150 produces a typical cutting groove of approximately 0.5–0.7 mm, depending on the wire and cutting conditions.
A narrower cutting groove means less marble is converted into cutting waste. This can help manufacturers:
• Recover more usable stone from each block
• Increase block utilization
• Reduce material loss during slab production
• Improve the economics of high-value marble processing
• Produce more usable material from expensive blocks
For premium marble, the goal is not simply to process a block quickly. It is to recover as much valuable stone as practical from that block.

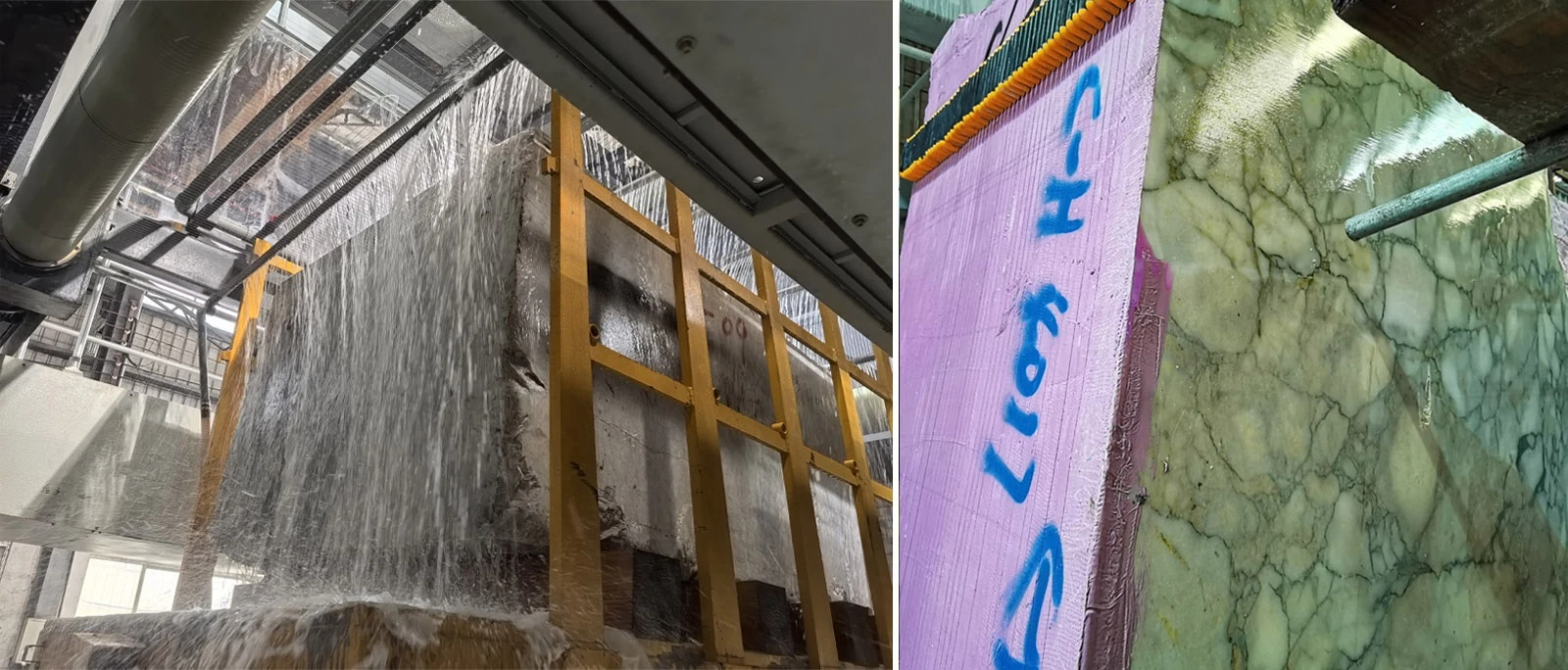

Reducing kerf loss does not necessarily mean accepting substantially lower productivity.

The HLBMW-100/150 can achieve a cutting depth of approximately 200–300 mm per hour, comparable to conventional gang saws and multiwire saws under suitable cutting conditions.

Actual cutting performance depends on factors such as:
• Marble type and hardness
• Block dimensions
• Diamond-wire specification
• Required slab thickness
• Cutting conditions and machine configuration
This combination of competitive cutting productivity and ultra-thin kerf is an important consideration for manufacturers evaluating a new marble block cutting machine.

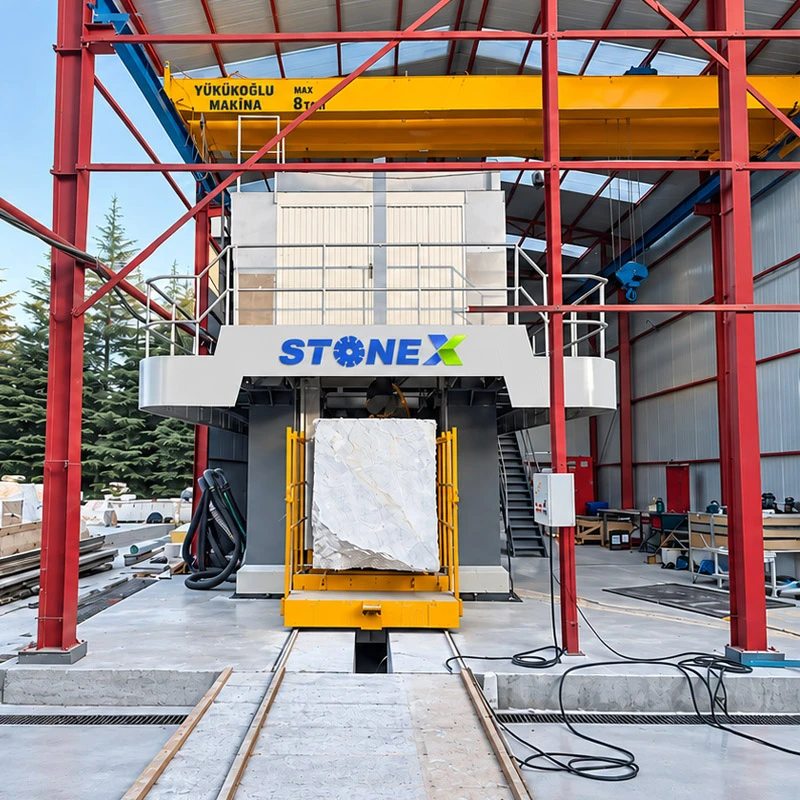

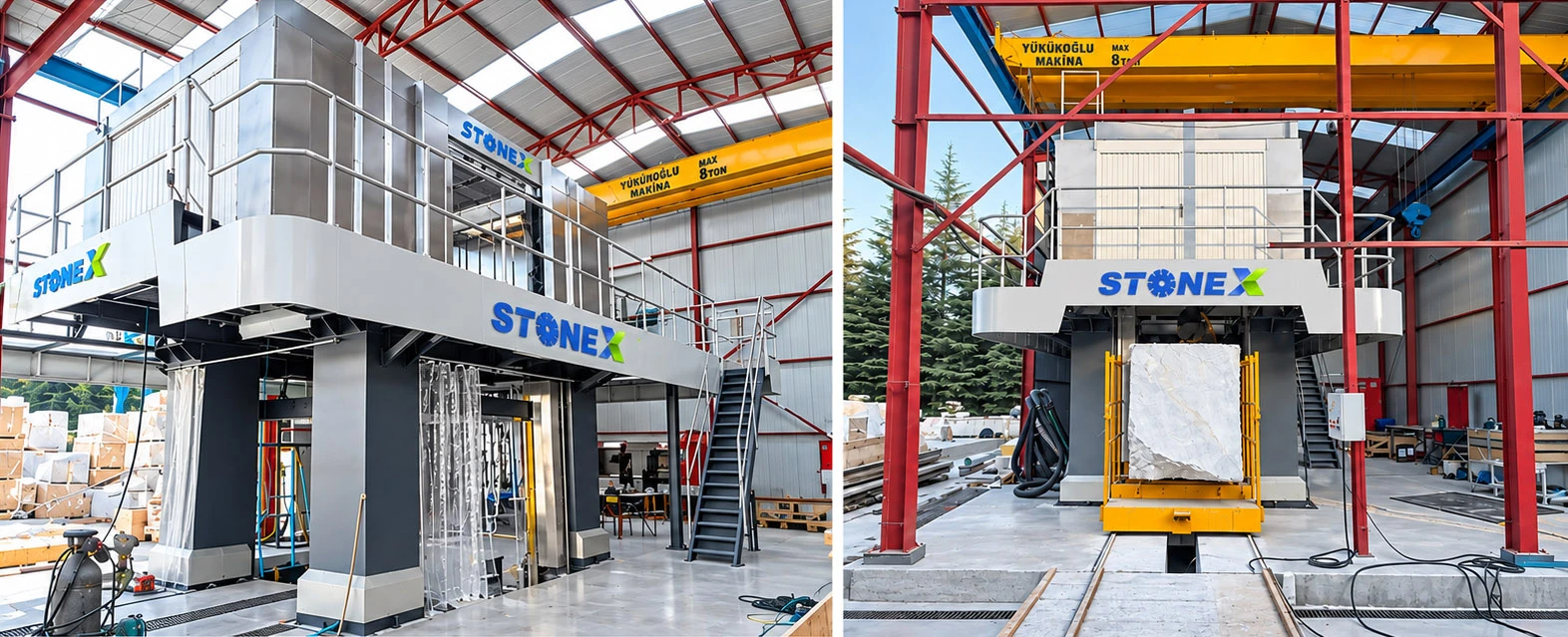

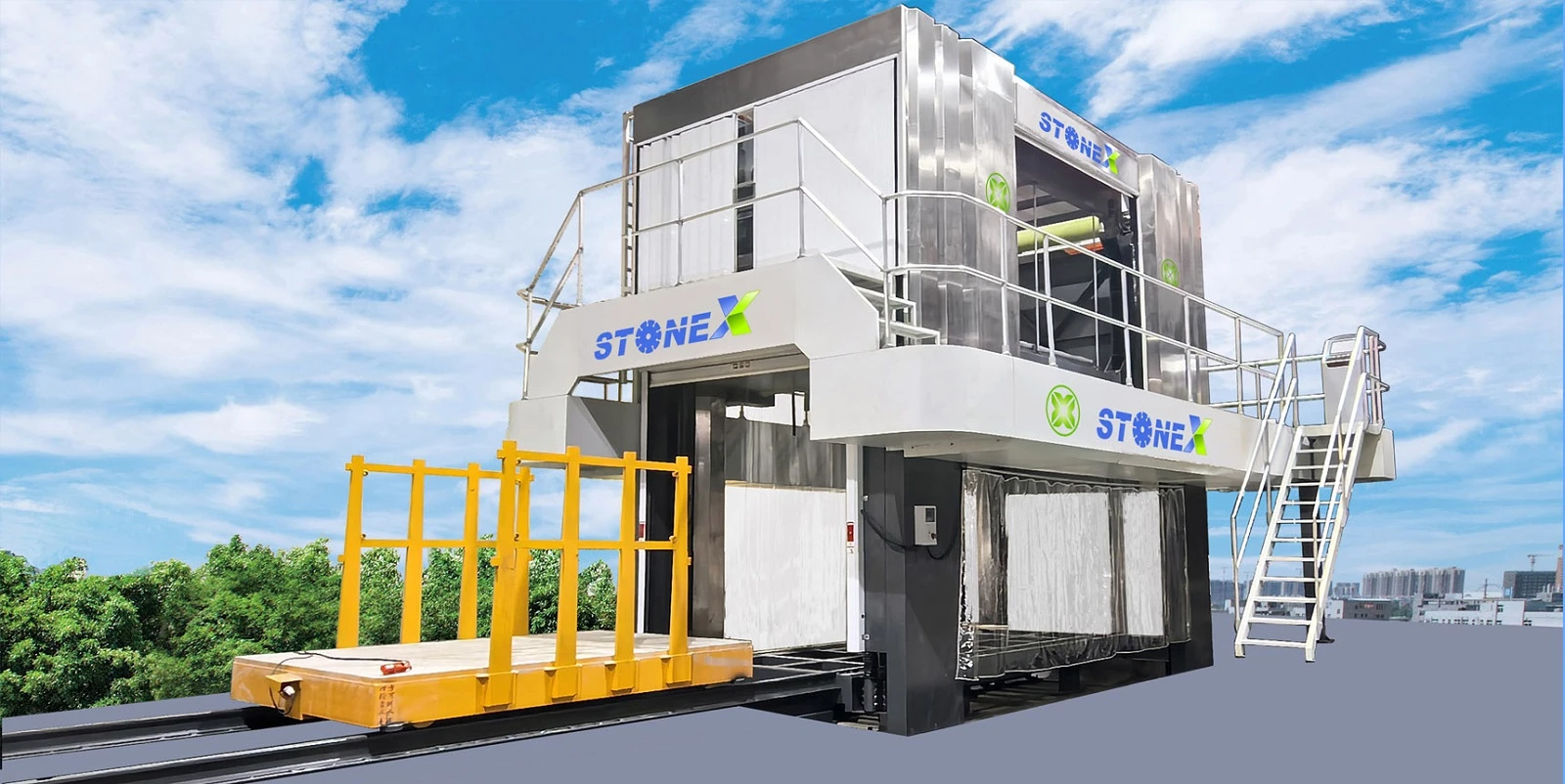

The HLBMW-100/150 uses a four-column structure.

Unlike the HLMW-100/150 two-column configuration, where the stone block remains fixed and the cutting module moves downward, the HLBMW-100/150 uses:

Fixed cutting module → Lifting stone block

The stone block is positioned on the lifting system and moves upward through the diamond-wire cutting area.

This configuration provides an alternative machine arrangement for factories evaluating ultra-thin multiwire technology for their block-cutting operations.

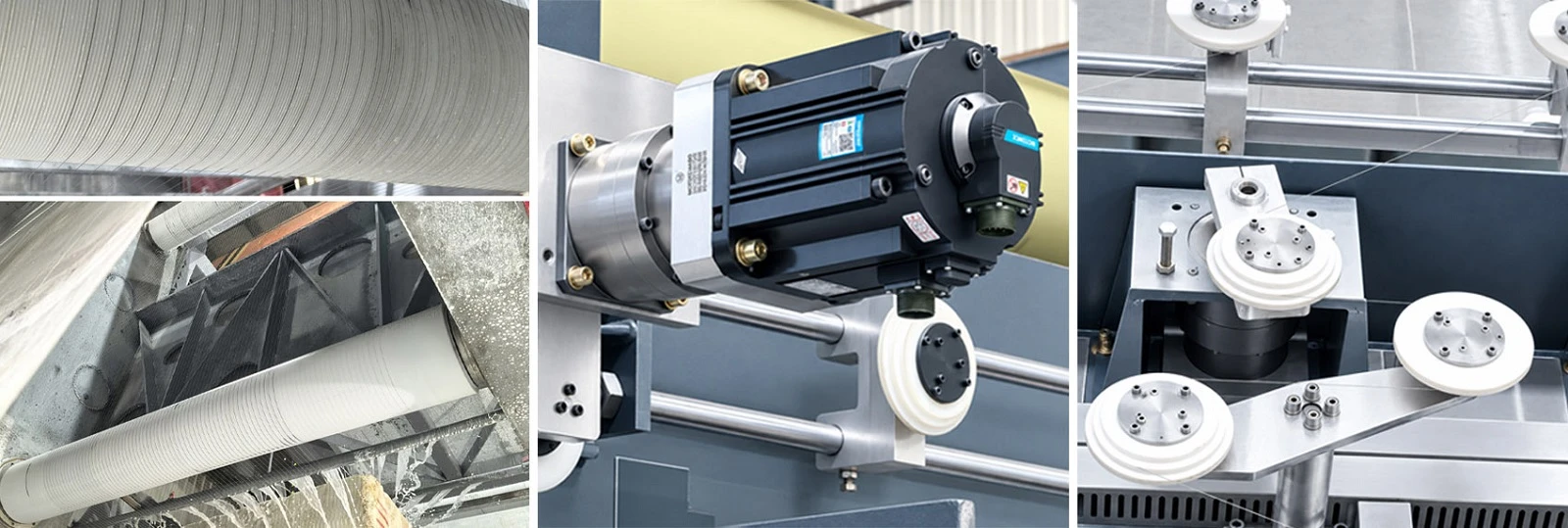

Ultra-thin diamond wire requires accurate tension management.

The HLBMW-100/150 uses a servo-controlled wire tension system to maintain stable wire tension during cutting.

This helps support:

• Stable wire movement
• Reduced wire vibration
• More consistent cutting
• Better slab flatness
• Reduced unnecessary wire stress and wear
Combined with ultra-thin diamond wire, the controlled cutting process is designed to achieve both low kerf loss and stable production.

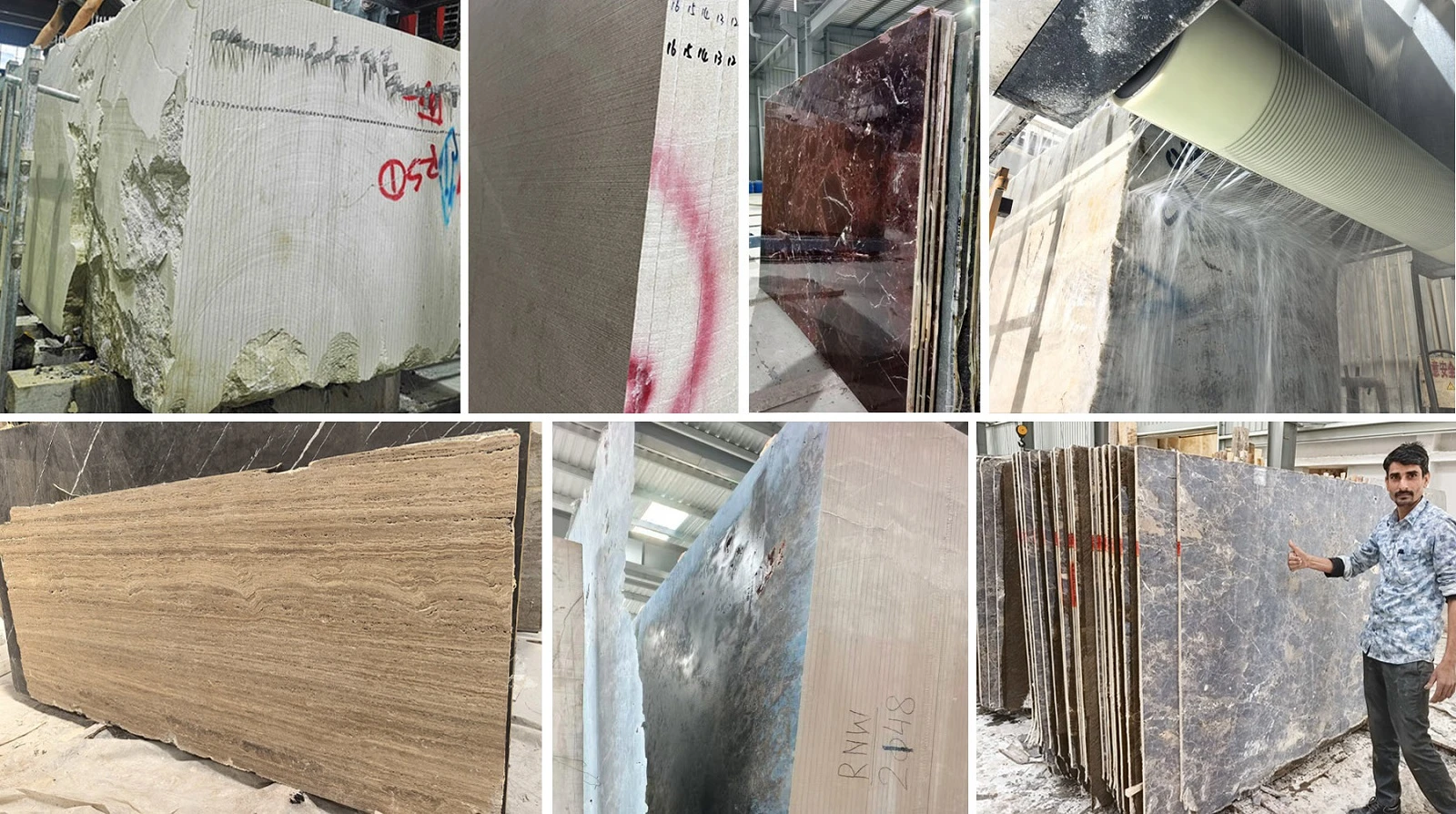

Some marble blocks have loose structures, brittle areas, delamination, or numerous dark cracks. Such materials can be more difficult to process consistently with conventional cutting methods.

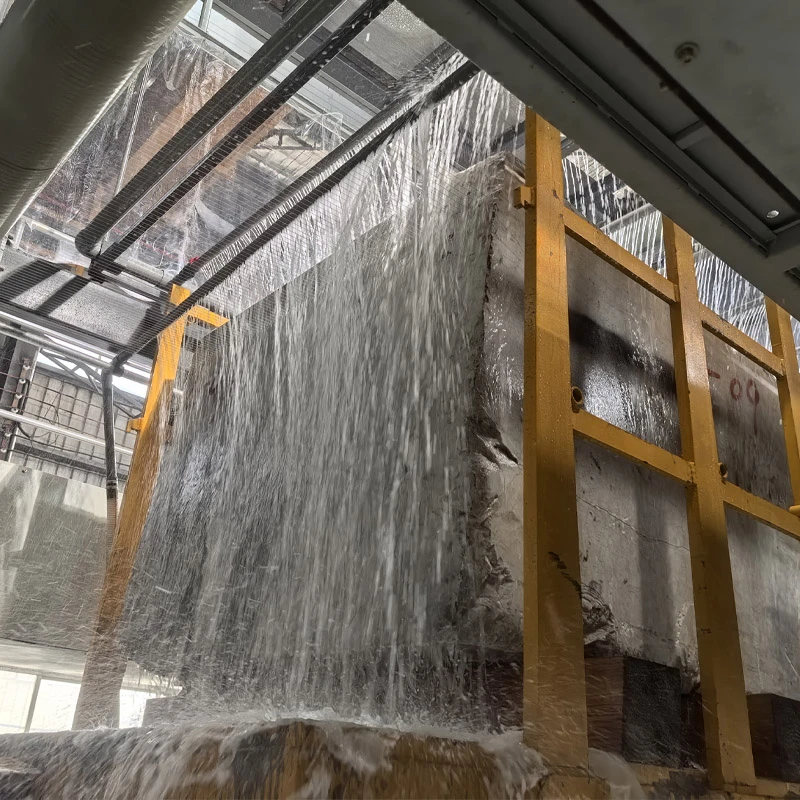

The HLBMW-100/150 uses a low-vibration diamond-wire cutting process that can help reduce cutting stress on difficult materials.

This can support:
• Gentler processing of fragile stone
• Lower risk of breakage during cutting
• More stable cutting of crack-prone blocks
• Better recovery of usable material
Actual results depend on the structure and condition of the individual stone block.

Ultra-thin multiwire technology also enables applications beyond conventional slab production.

For lightweight stone-panel applications, one practical process can be:

HLBMW-100/150 → 8–10 mm or approximately 6 mm stone sheet → Aluminum honeycomb composite → Ultra-Thin Single Diamond Wire Saw splitting

Large-format stone sheets below approximately 8 mm can have limited mechanical strength and may be difficult to handle safely during subsequent processing.

Composite construction with an aluminum honeycomb core can provide additional support for lightweight stone-panel applications.

The ultra-thin multiwire saw therefore serves as a block-to-thin-sheet cutting technology, rather than simply a machine for producing the thinnest possible slab.

Actual performance depends on stone type, block dimensions, wire specification, slab thickness and operating conditions.

The HLBMW-100/150 is particularly relevant for manufacturers that:
• Process high-value marble blocks
• Want to improve block utilization
• Need to reduce kerf loss
• Are evaluating alternatives to conventional gang saws or multiwire saws
• Process fragile, cracked or difficult stone
• Want competitive cutting productivity with ultra-thin wire
• Need flexibility for thin and ultra-thin stone sheets
• Are developing lightweight stone-panel products

Ultra-thin diamond wire → Lower kerf loss

0.5–1.0 mm typical cutting groove → Higher potential material recovery

200–300 mm/h cutting depth → Competitive cutting productivity

Servo-controlled tension → Stable wire management

Low-vibration cutting → Gentler processing of difficult stone

Four-column lifting-block structure → Alternative configuration for industrial block cutting

For marble processors, the central benefit is simple: more usable stone from each valuable block without making cutting productivity the primary trade-off.
