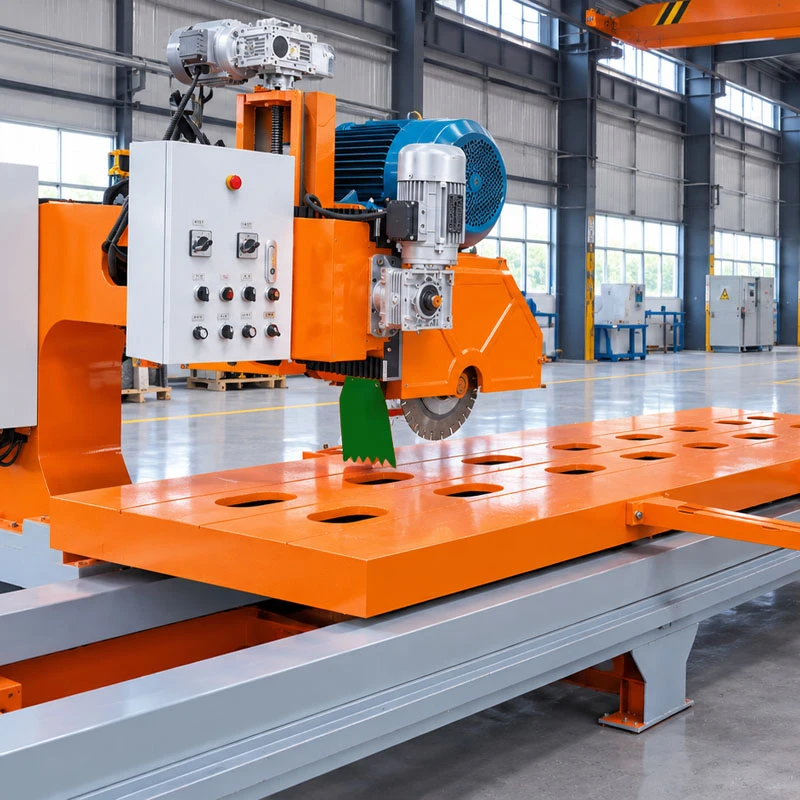

HSQ-3000 Manual Stone Slab Cutting Machine for Marble and Granite

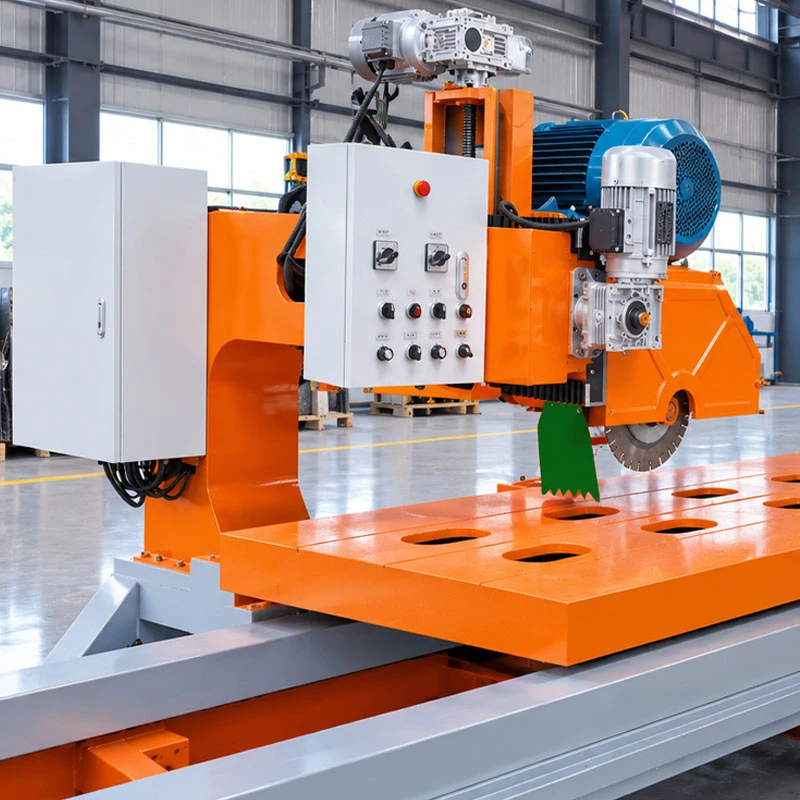

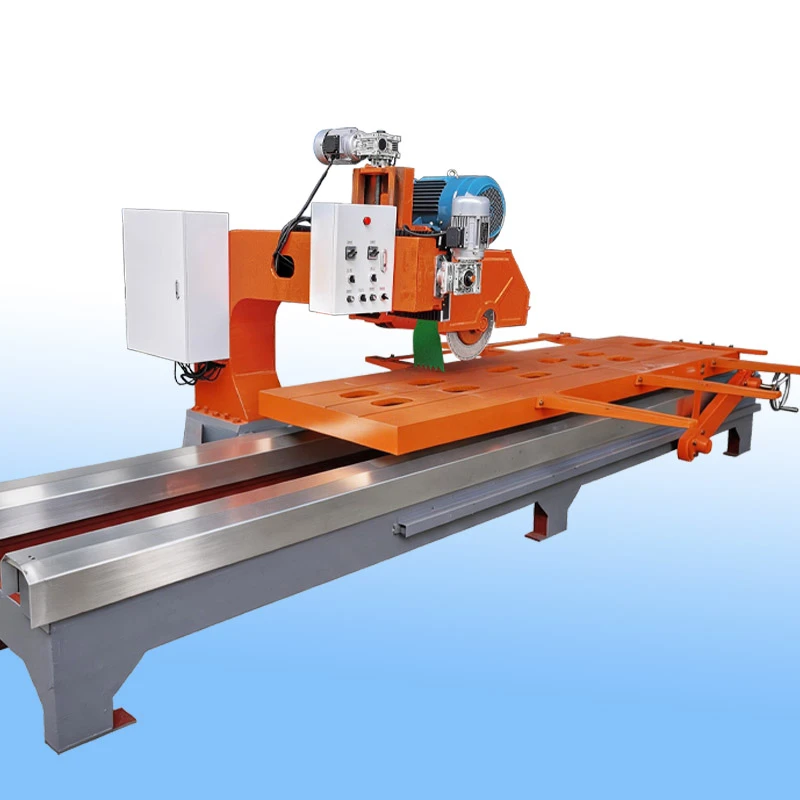

The STONEX HSQ-3000 manual stone slab cutting machine is designed for straight cutting, trimming, and 45° chamfering of marble and granite slabs. It features a compact structure, stable performance, and a motor-driven saw head that moves up and down for convenient cutting operations.
With manual slab positioning and a saw head that can rotate 45°, the HSQ-3000 offers a practical and flexible solution for stone processing workshops that need reliable slab cutting and bevel-edge preparation.
Key Features of the HSQ-3000

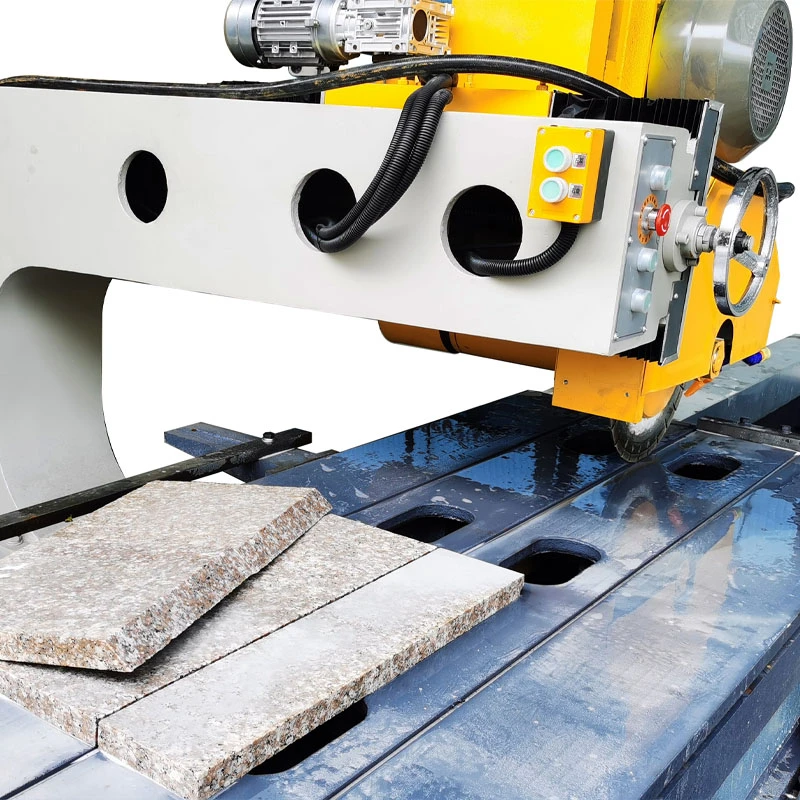

- Motor-driven saw head: Controls the blade's up-and-down movement for convenient cutting.

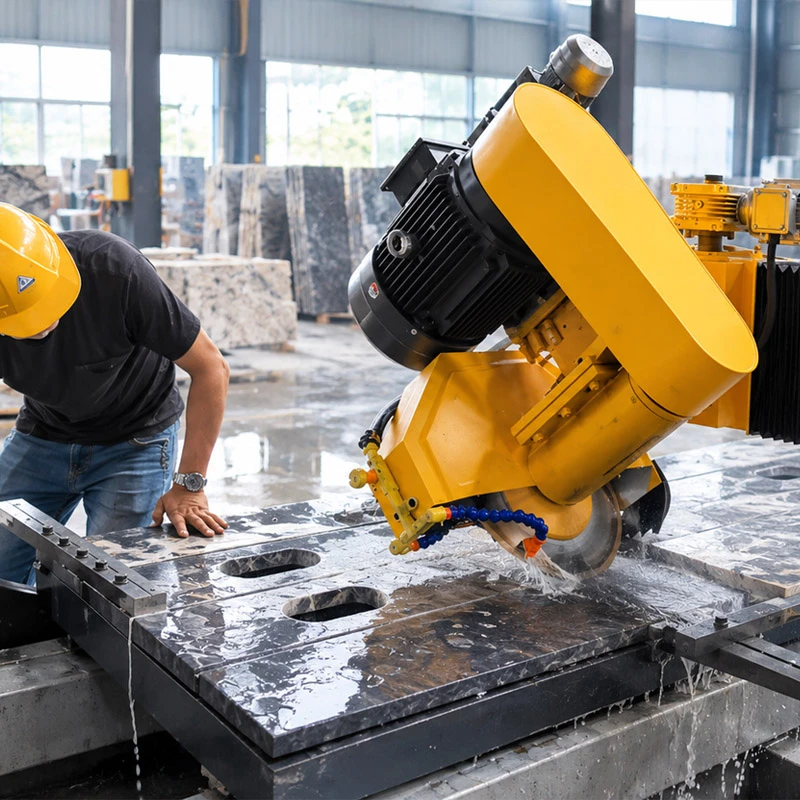

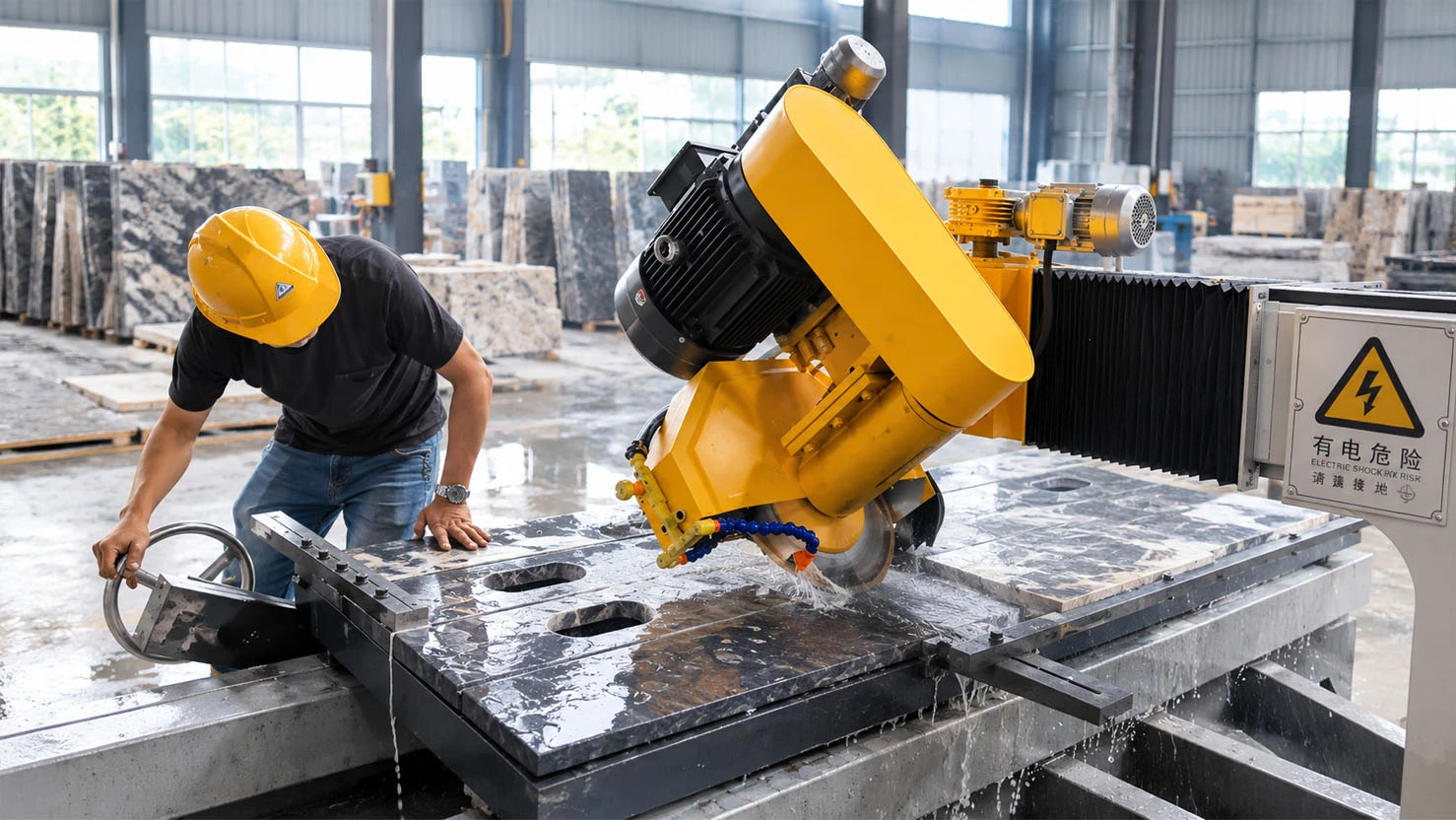

- 45° chamfering capability: The saw head rotates up to 45° for bevel and chamfer cutting.

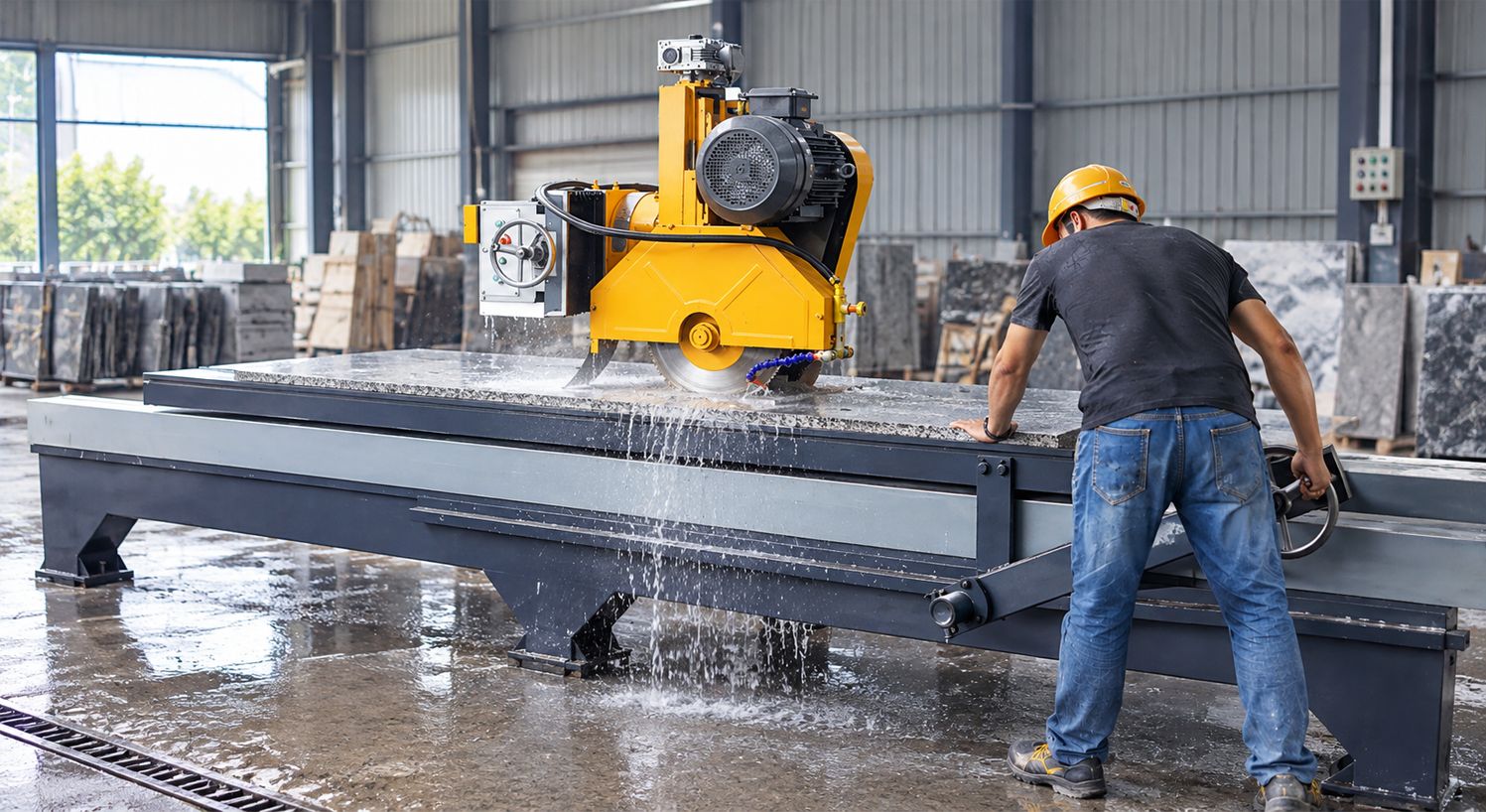

- Manual slab positioning: Allows operators to position slabs according to the required cutting dimensions.
- Compact and stable structure: Designed for dependable operation in daily stone-processing work.
- Large working area: The 3000 × 800 mm work platform accommodates a range of slab-cutting tasks.
Applications

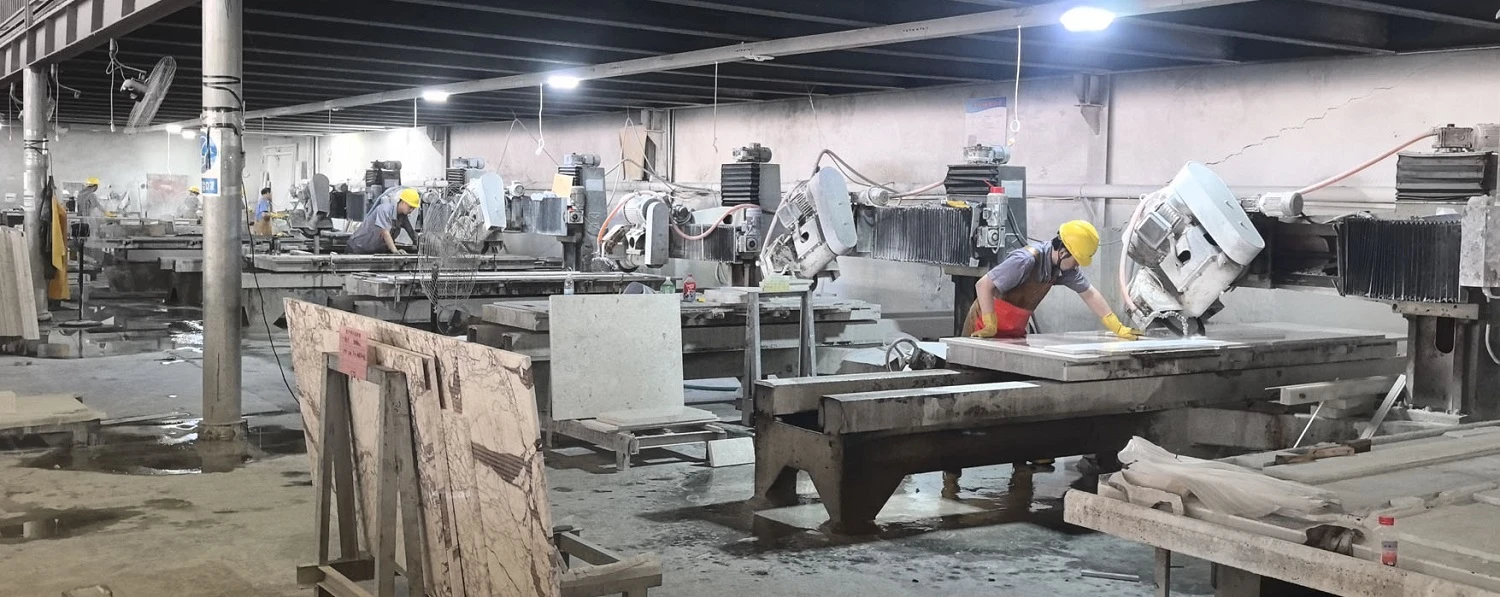

The HSQ-3000 manual stone cutting machine is suitable for processing marble and granite slabs in stone fabrication workshops. Typical applications include:

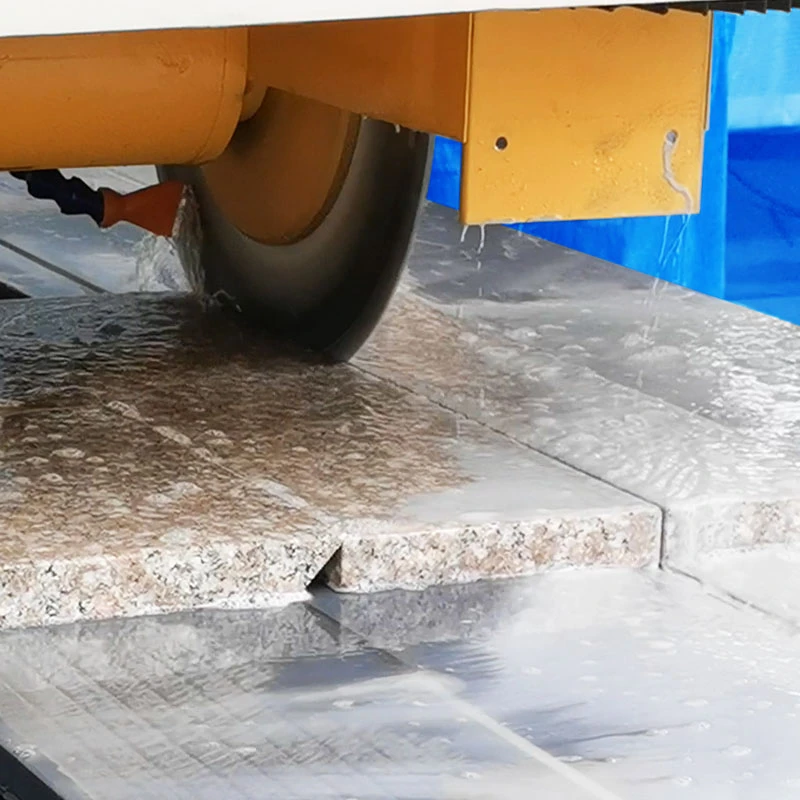

- Straight cutting and slab trimming
- Cutting slabs to the required dimensions

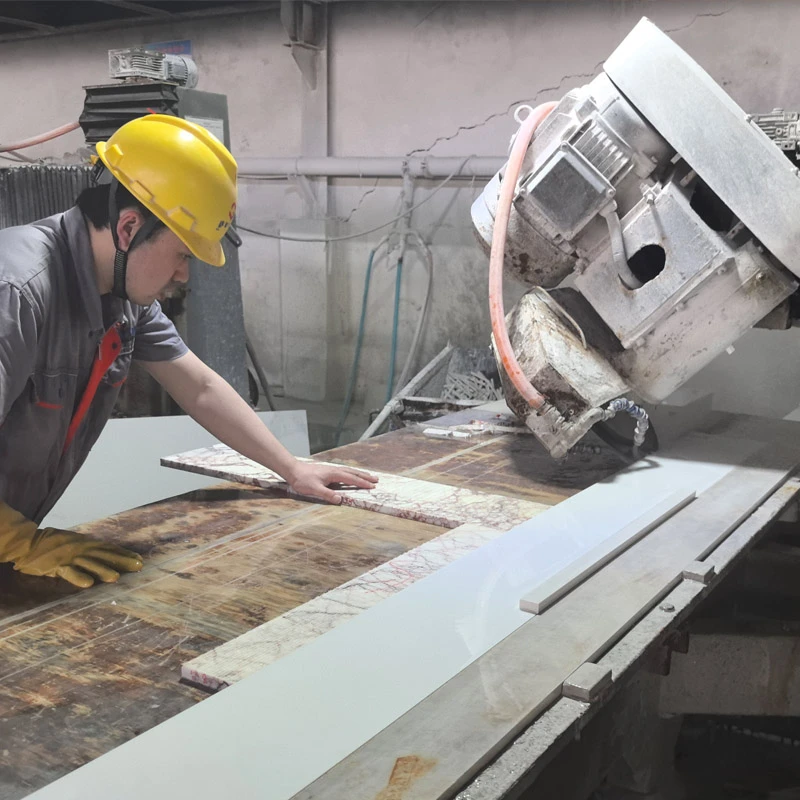

- 45° bevel and chamfer cutting
- Preparing stone components for further fabrication and installation
HSQ-3000 Technical Specifications
|
Parameter |
Specification |
|
Model |
HSQ-3000 |
|
Saw blade diameter |
Ø350–600 mm |
|
Working platform dimensions |
3000 × 800 mm |
|
Maximum processing size |
3000 × 1200 × 180 mm |
|
Main motor power |
11 / 15 kW |
|
Total power |
16 kW |
|
Machine weight |
2,000 kg |
|
Overall dimensions (L × W × H) |
5000 × 2200 × 2000 mm |
Note: Confirm the required main motor configuration and processing dimensions with STONEX before ordering.
Why Choose the HSQ-3000 Manual Stone Cutting Machine?
For stone workshops looking for a straightforward and flexible cutting solution, the HSQ-3000 combines motor-driven blade movement with manual slab positioning and 45° cutting capability. Its large work platform and compact machine structure make it a practical choice for everyday marble and granite fabrication.
Contact STONEX to discuss your stone types, slab dimensions, and cutting requirements.
Frequently Asked Questions
Q: What materials can the HSQ-3000 cut?
A: It is designed for stone slab processing, including marble and granite. The suitable blade and cutting setup depend on the material and application.
Q: Can the HSQ-3000 perform 45° chamfering?
A: Yes. Its saw head can rotate up to 45° for bevel and chamfer cutting.
Q: Is the HSQ-3000 fully automatic?
A: No. The machine uses motor-driven up-and-down blade movement, while slab positioning and cutting operations require manual operation.
Q: What is the maximum processing size?
A: The listed maximum processing size is 3000 × 1200 × 180 mm. The actual cutting setup should be confirmed for your workpiece.
Q: What saw blade diameter does the HSQ-3000 support?
A: It supports saw blade diameters from 350 to 600 mm.
Q: Is the HSQ-3000 suitable for small and medium-sized stone workshops?
A: Its manual operation, compact structure, and flexible cutting functions make it worth considering for workshops handling routine marble and granite slab processing.
